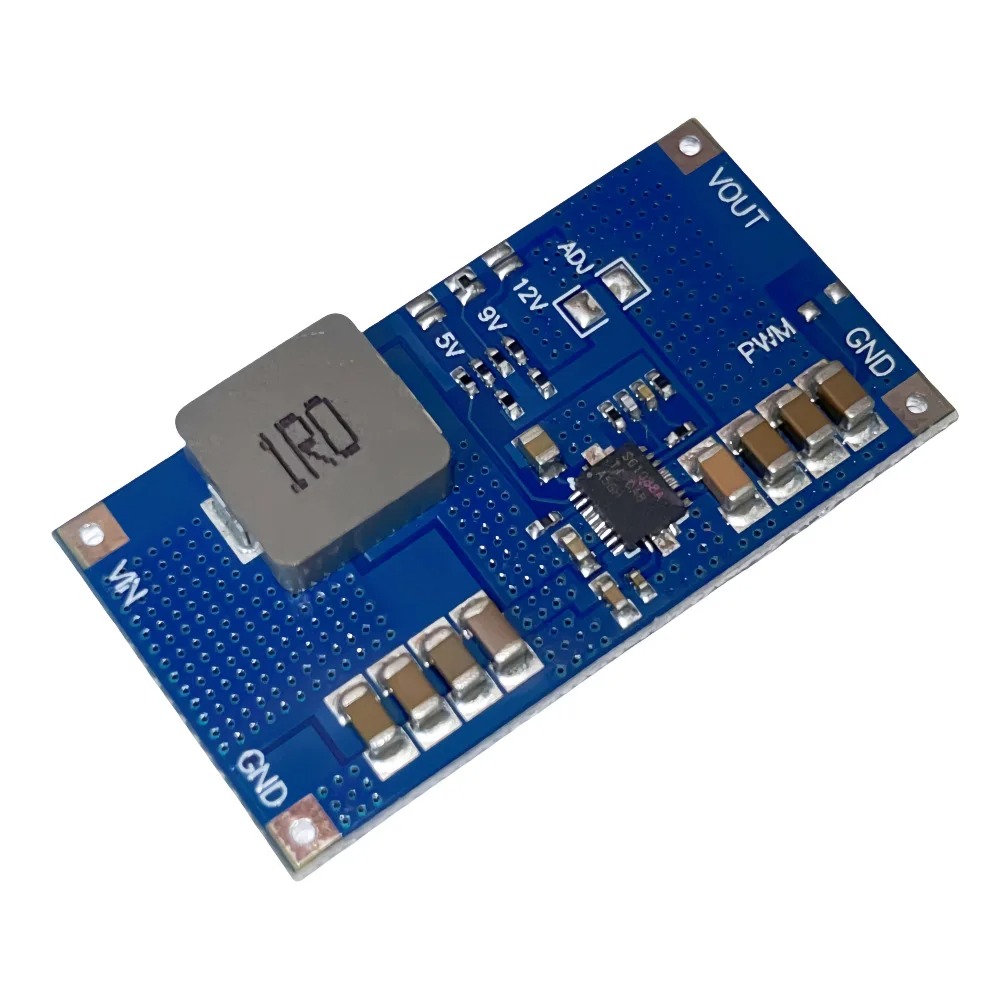

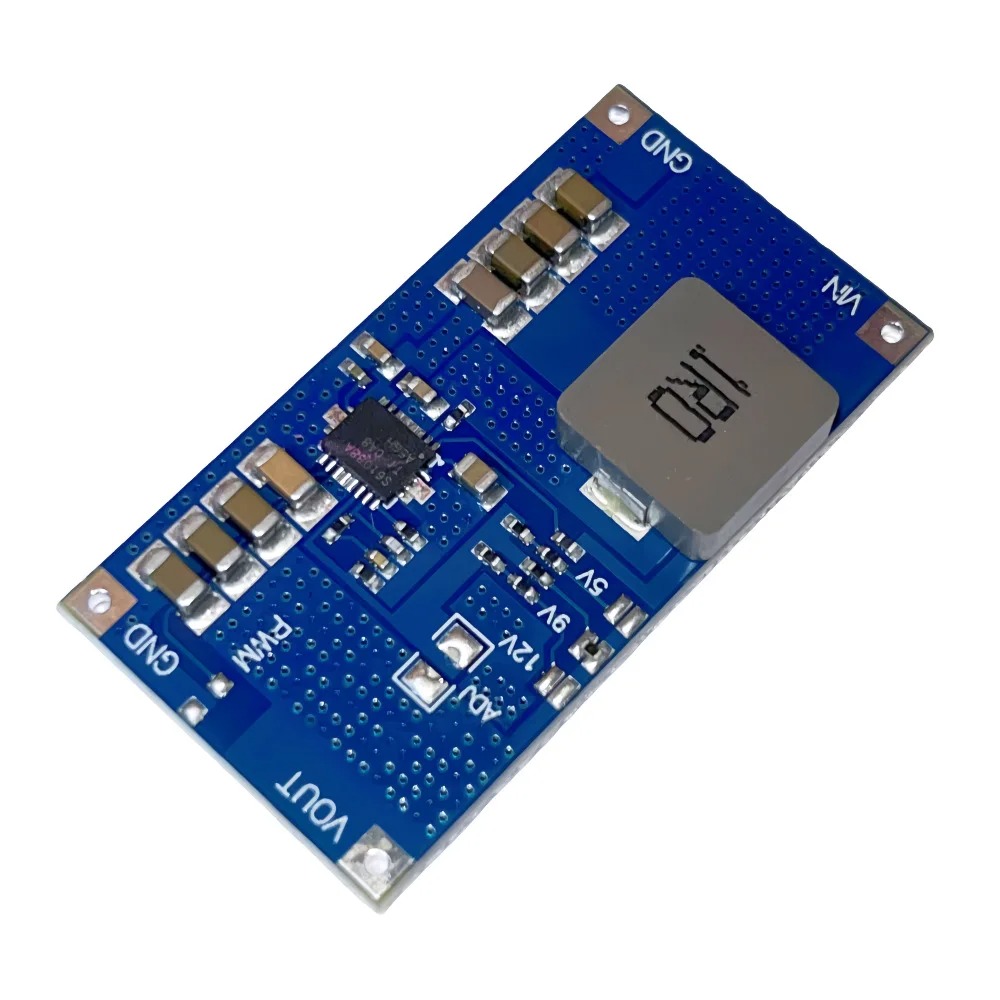

ماژول مبدل DC-DC بوست TPS61088 با قدرت بالا 5/9/12 ولت،10 آمپر، فرکانس 1 مگاهرتز

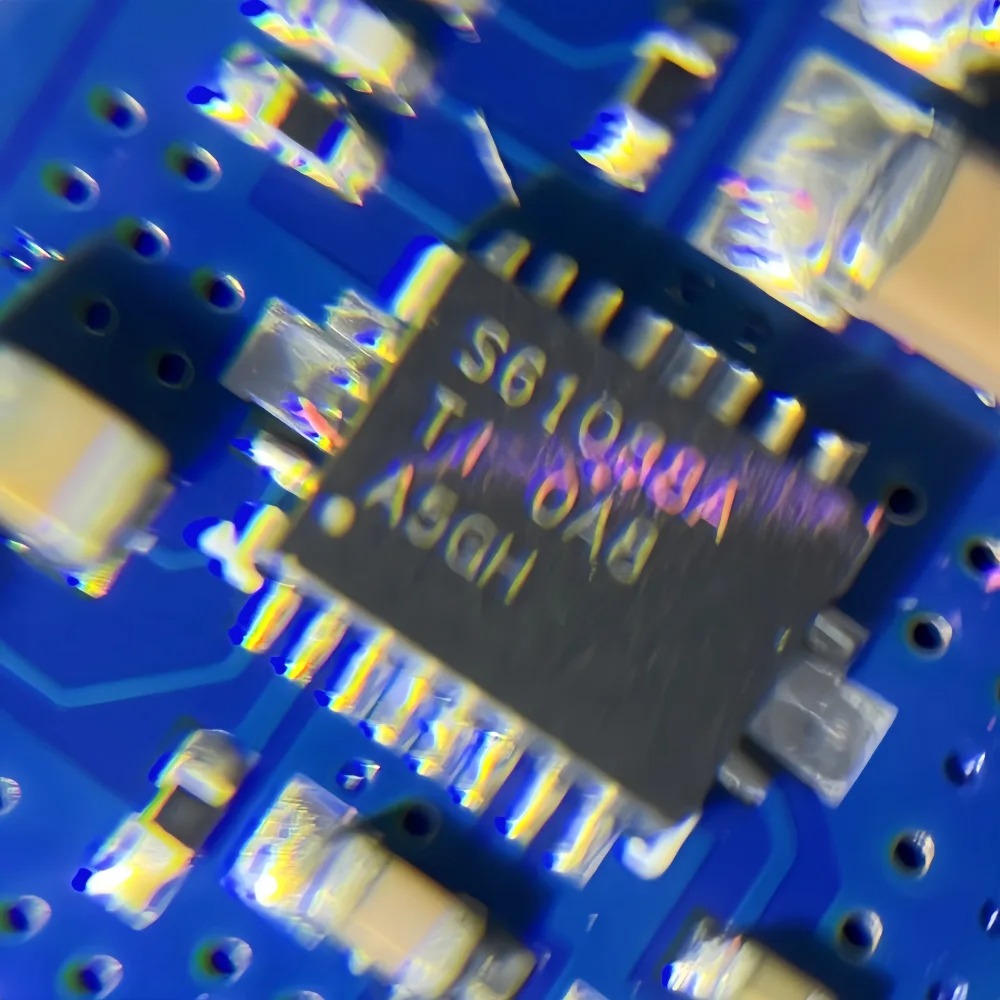

• چیپست: TPS61088
• ولتاژ ورودی: 2.7 تا 9 ولت
• ولتاژ خروجی: 4.5 تا 12.6 ولت
• جدول جریان خروجی:

ولتاژ ورودی: DC 2.7–9V

جریان ورودی: 9A (حداکثر)

جریان خروجی: بستگی به ورودی دارد، برای محاسبه به دستورالعمل‌های زیر مراجعه کنید

ولتاژ خروجی: DC 4.5–12.6V

توان خروجی: حداکثر 30W (نیاز به اقدامات خنک‌سازی)

فرکانس سوئیچینگ: حدود 1MHz

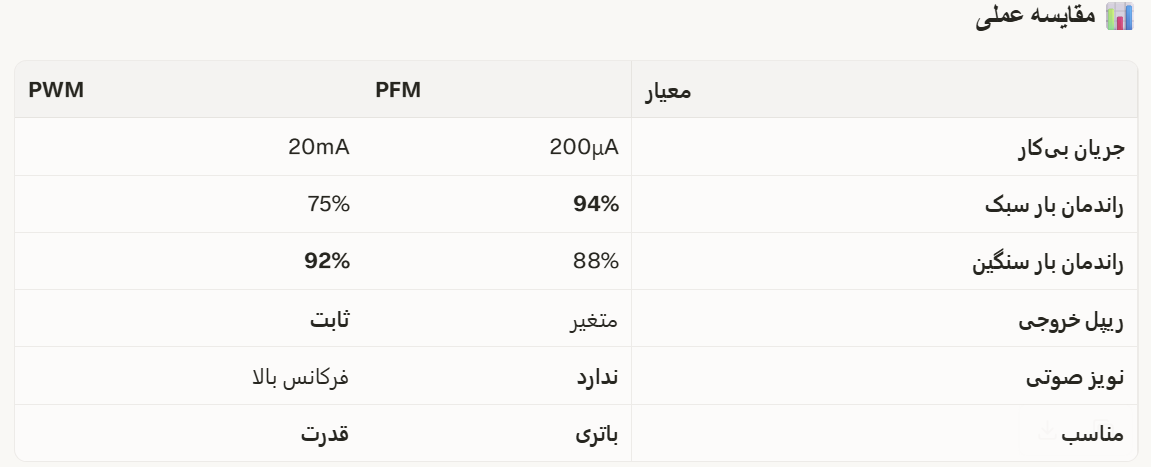

حالت کاری: PWM / PFM

پارامترهای زیر در حالتی اندازه‌گیری شده‌اند که مقدار بوست روی 9V و در حالت PWM تنظیم شده باشد:

• جریان ایستابی (Quiescent): 15–65 mA (حالت PWM)
  200 µA–600 µA (حالت PFM)
• ریپل خروجی: 30 mVpp (بدون بار)
• بازده خروجی: تا 92% (حداکثر)

حالت تنظیم: پتانسیومتر، جهت خلاف‌گردان برای افزایش ولتاژ

انتخاب توسط پد جامپر: 5 / 9 / 12V — پد ADJ را می‌توانید خودتان تنظیم کنید

رابط ماژول: KF301-5.08 / پدها

وزن ماژول: 10g / 5.4g

ابعاد ماژول: 40 × 22 mm

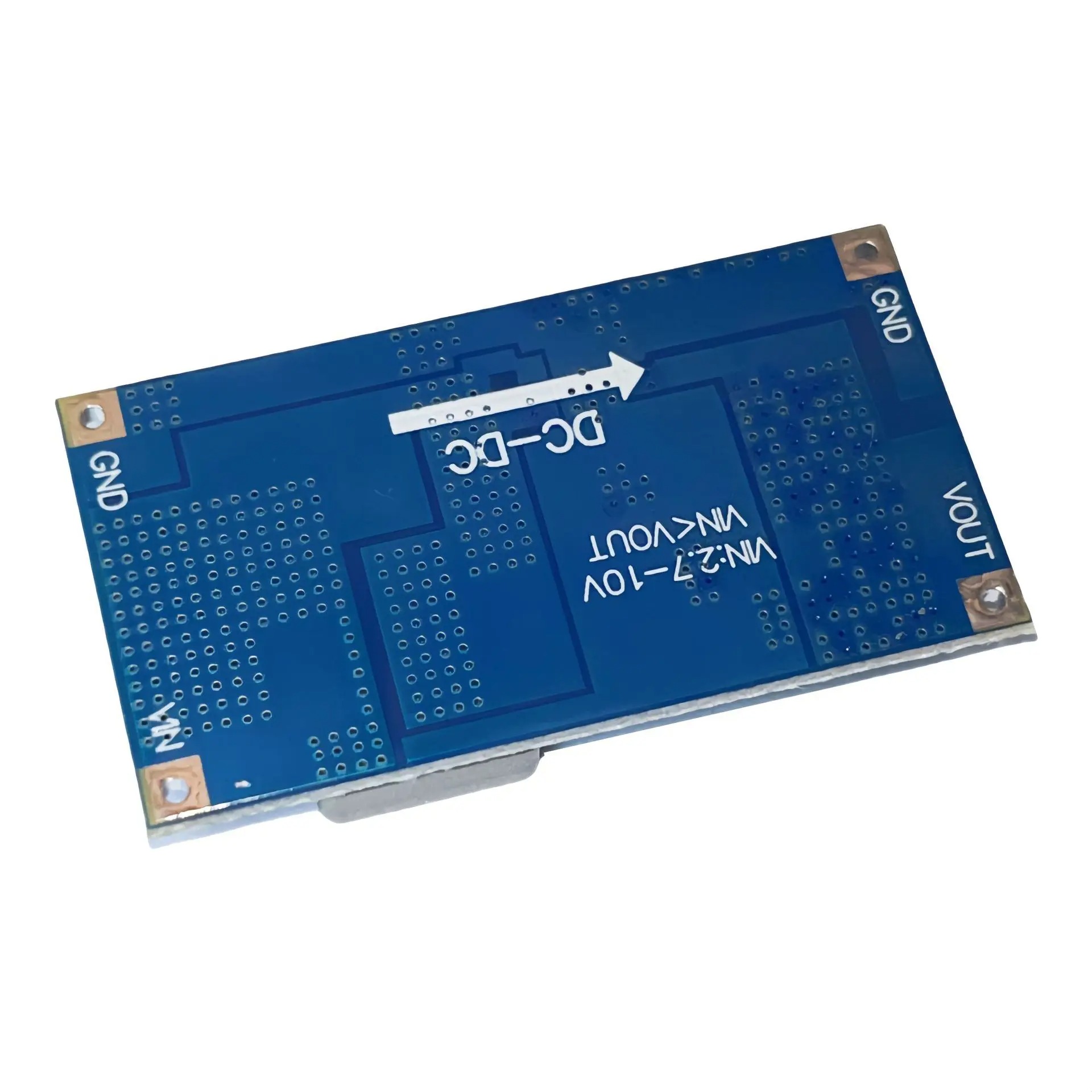

پین‌ها:

• VIN: ورودی مثبت تغذیه، 2.7–9V
• GND: ترمینال منفی ورودی و خروجی (مشترک)
• VOUT: خروجی مثبت تغذیه، 4.5–12.6V
•

پدهای جامپر: اتصال کوتاه پد مربوطه ولتاژ متناظری را فعال می‌کند. اگر هیچ‌یک از پدهای جامپر اتصال کوتاه نشده باشند، از مقاومت ADJ برای تنظیم ولتاژ استفاده کنید. یکی از سه پد (5/9/12V) یا مقاومت ADJ را می‌توان انتخاب و استفاده کرد — فقط یک روش در هر بار باید فعال باشد.

This module uses TI TPS61088 power chip programme, stable performance, small ripple, with a 10A switching current capability, switching frequency of about 1MHZ, the module provides PWM and PFM two modes of operation user-adjustable (the default PFM low-power mode shipment), on-board high-quality tantalum capacitors (adjustable version) as well as high-current inductors, the use of high-quality components to further improve the module performance and stability.

Module in the output of high-power occasions still have most of the other boost module can not be comparable to the stability of the user in the use of multiple lithium batteries in parallel power supply boost applications to 5V voltage 4A/5A output of high-current occasions are a good choice, the same boost to 9V/12V voltage is not a problem, the output power Highest can be up to 30W, 9V, 12V output, the larger current occasions output, the user will not have to pay attention to the power consumption of the module, the user will be able to use the module in a more efficient way. The output power can be up to 30W with 9V and 12V voltage output, and the user only needs to do a good job of heat dissipation to get a good output ripple with load when outputting a large current.

If not specified, the following parameters are tested in PWM mode (recommended operating mode).

Module Type: Switching Power Supply, Boost Power Supply

Input Voltage:DC2.7-12V

Input current:9A(max)

Output current:Determined by the input, refer to the following instructions for calculation

Output Voltage:DC4.5-12.6V

Output power: 30W(max), heat dissipation measures required

Switching frequency: about 1MHZ

Operating mode: PWM /PFM

The following parameters are measured when the boost value is adjusted to 9V in PWM mode, for user's reference Quiescent current:15-65ma(PWM mode)

200ua-600ua(PFM mode)

Output ripple:30mVpp(no load)

Output efficiency:92%(max)

Adjustment mode: potentiometer, counterclockwise boosting

Jumper pad selection, 5/9/12V, ADJ pad can be adjusted by yourself

Module interface:KF301-5.08/pads

Module weight:10g/5.4g

Module size: 40x22mm (manual measurement, there are deviations)

VIN:Power input positive, 2.7-12V

GND:Input and output negative terminal, common

VOUT: Power output positive, 4.5-12.6V

Jumper pads: short to enable the corresponding voltage, if all the jumper pads are not shorted, then use the ADJ resistor to adjust the voltage, the three discs and the ADJ resistor can only choose one way to work

PWM shorting pad on the side of the output terminal is shorted for PWM mode, and disconnected for PFM mode, default is PFM mode, users can adjust it by themselves. For the fixed voltage version, the default is PFM mode, can be adjusted to PWM mode by soldering a 0Q resistor to the PNIM pads or shorting the two pads in other ways.

1. The module is a boost module, so the output voltage of the module needs to be larger than the input voltage, after testing, it is recommended that the output voltage is higher than the input voltage by more than 2V, otherwise it is easy for the output voltage to be higher than the set value.

2. The module MAX switching current is 10A, users are required to leave room for use within 9A.

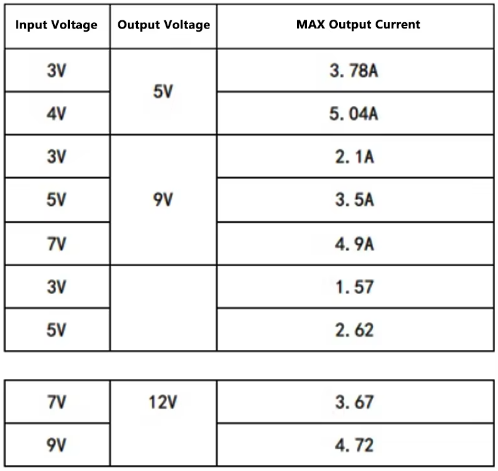

3. Output current is determined by the input parameters, the input current shall not exceed 9A, the efficiency of 70% (leave a margin) for the calculation, to get the following formula for calculating the module output MAX current value: lout = Vin * 6.3 / Vout.

4. Module in the input voltage is too low when the output power can not be fully played out, in the following 3V power supply is particularly obvious, the demand for larger power output users need to pay attention to when used

1, please do not touch the bottom potentiometer pin area with your hands or other substances with small resistance value, the contact will be a change in the potential resistance value and lead to large fluctuations in the output voltage.

2、Please use a shorter/thicker wire to connect when measuring voltage with larger current load (wire resistance will affect the measured voltage), or measure directly to the terminals, otherwise it will lead to inaccurate voltage measurement.

3, the above parameters are not module limit values, but to leave some room after the parameters specified in the module test its output power in the case of cooling fins for heat dissipation long run over 50W This shows that in high-power occasions a good thermal environment is particularly important.

4, on the use of EN port, EN port default connection to VIN, for the boost mode on, EN connected to GND for the shutdown mode, users need to note that the shutdown mode does not mean that no output, but the chip boost function will be shut down, at this time the output voltage will be slightly lower than the input, and can output current.

5, in order to avoid customers touching the module circuitry due to static electricity and other reasons leading to chip burnout, so should try to avoid the module in the power-up with hands touching the chip near the circuit
